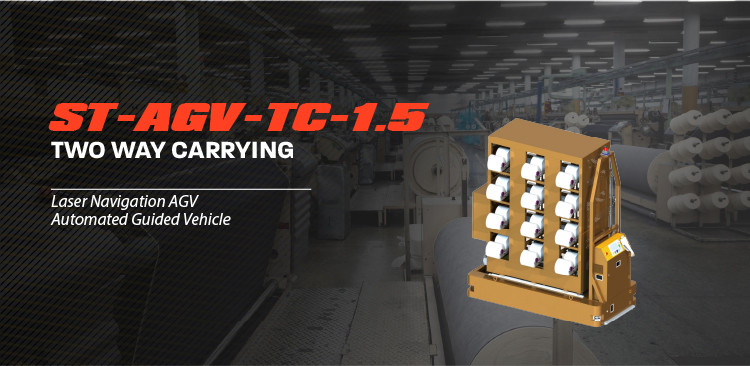

SUNTECH New Design Laser Navigation AGV Two Way Carrying Type
SUNTECH New Design Laser Navigation AGV Two Way Carrying Type
Model
ST-AGV-TC-1.5

Item specifics

Dimension
2400mm(L)×1400mm(W)×2790mm(H)
Weight
1500kg
Capacity
1500kg
Guiding Way
Laser
Walk Speed
0-40m/min
Battery
Lithium  Battery,48V 200AH
Operation
Manual/wireless

Product review

Description

SUNTECH NEW DESIGN AUTOMATED GUIDED VEHICLE Two Way Carrying Type

This AGV contains two parts, hardware and software, its main function is to realize the automatic docking and handling of materials in the automatic threading production line of texturing workshop.

The AGV is a non-standard customized carrying AGV. The automatic threading AGV part of the texturing workshop is composed of the AGV central management system and the non-standard customized unit loaded on the AGV. At the same time, the non-standard customized unit loaded on the AGV is composed of mechanical structure and electric actuator, pneumatic actuator and other components.

Benefits

1.Minimal human operation

2.Fewer injuries

3.Efficiency and a high return on investment.

PRODUCT PARAMETERS

Dimension

2400mm(L)×1400mm(W)×2790mm(H)

Capacity

1500kg

Operation Way

Manual/Wireless

Walk Speed

0-40m/min

Communication

Wireless

Guiding Way

Laser

Battery

Lithium  Battery DC 24V/180Ah
