Model
ST- SLNM

Item specifics

Name
Nonwoven Spunlace Production Line
Model
ST- SLNM
Line speed
up to 400 m/min (Direct Line)
Capacity
25,000 t/a (Direct Line)
Energy savings
up to 35%
Recycled water
up to 99%
Width
up to 6.6 m

Product review

Description

Product Description

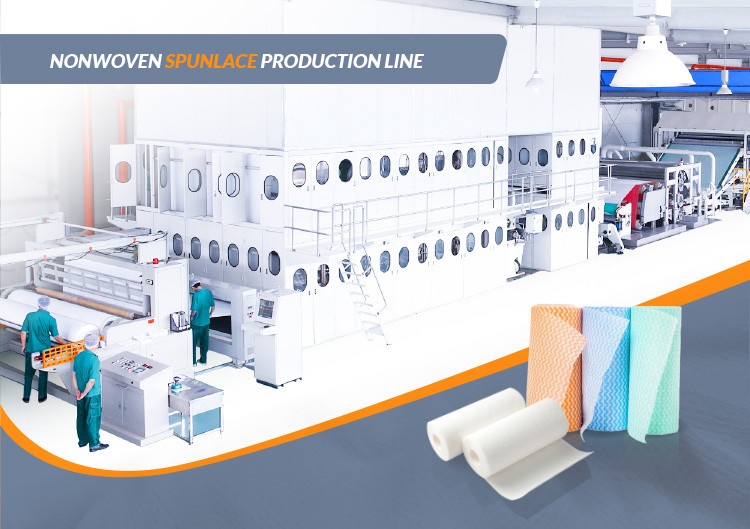

SUNTECH AUTOMATIC SPUNLACE NONWOVEN FABRIC PRODUCTION LINE
Spunlace production line is a set of fiber mixing, carding, cross-laying, and then through the spunlace, drying, winding, slitting into a fiber product line. Starting from the mixing, opening and cleaning of raw materials, various stand-alone machines are designed in series to meet the requirements for weighing, mixing, opening and cleaning of various fibers, as well as continuous and uniform delivery.

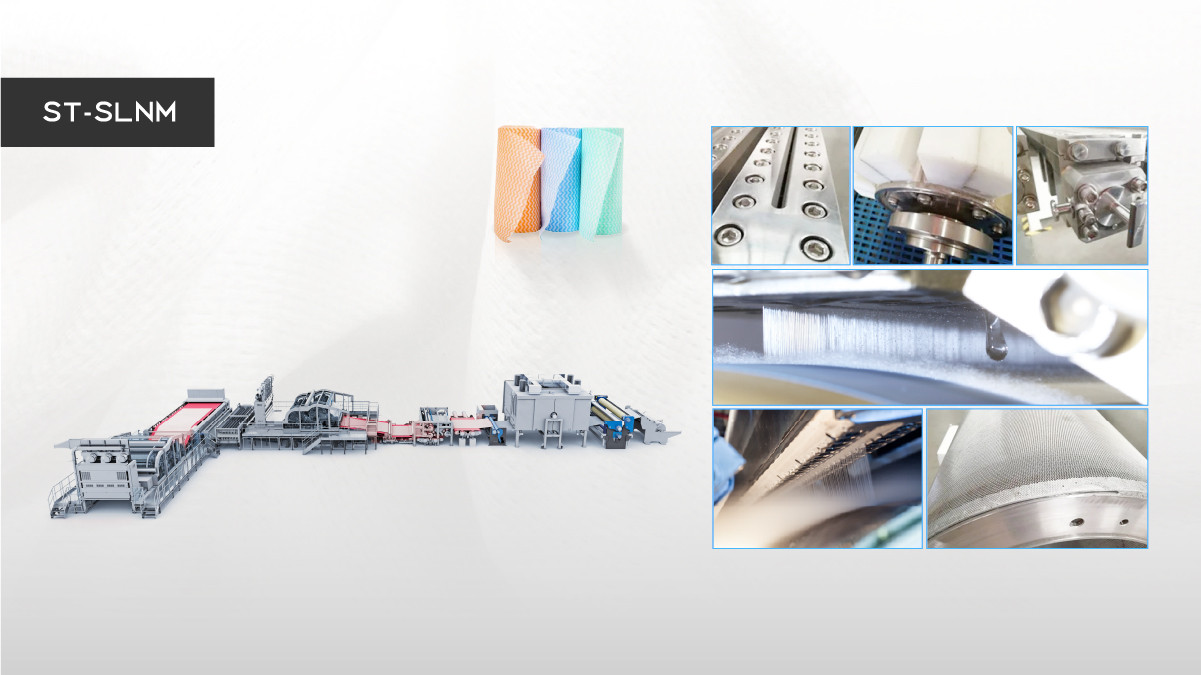

Machine Drawing

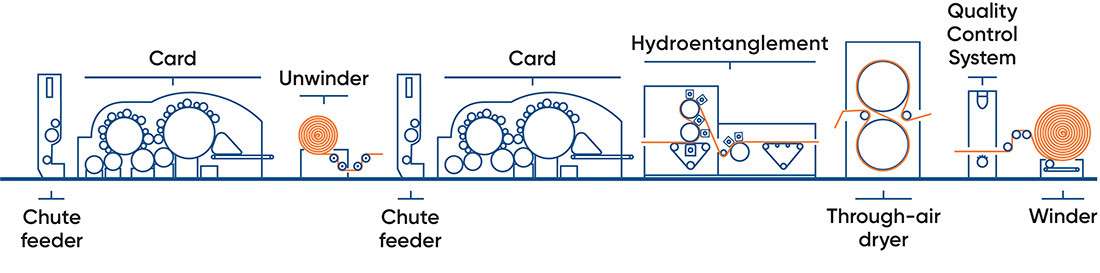

The direct line configurations are mainly designed for lightweight spunlace fabrics using

sub-denier fibers, and for cellulosic fibers.

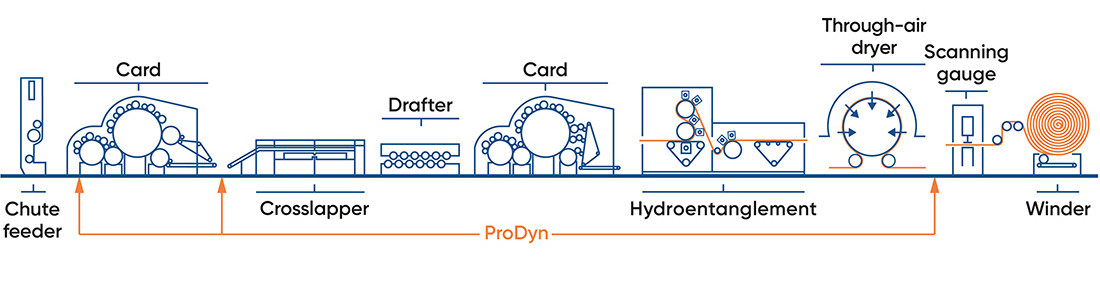

For durable end-uses, crosslapping line configurations are preferred using a wide range of technical fibers such as: PTFE, PA6, PA66, PE, glass fibers, PPS, Kevlar, and so on.

Technical Specification

Name

Nonwoven Spunlace Production Line

Model

ST- SLNM

Line types

Direct, Crosslapping

Material

Viscose / Polyester

Working width

Up to 6.6m

Fabric Weight(GSM)

18-120 gsm (Direct Line)

Line speed

Up to 400 m/min (Direct Line)


Capacity

25,000 t/a (Direct Line)


Energy savings

up to 35%

Recycled water

up to 99%

Weight Control

PLC

Total Power

4.5-8.5kw

End uses

Wipes, medical, hygiene (Direct Line)

Face masks, automotive, artificial leather, filtration, etc. (Crosslapping Line)

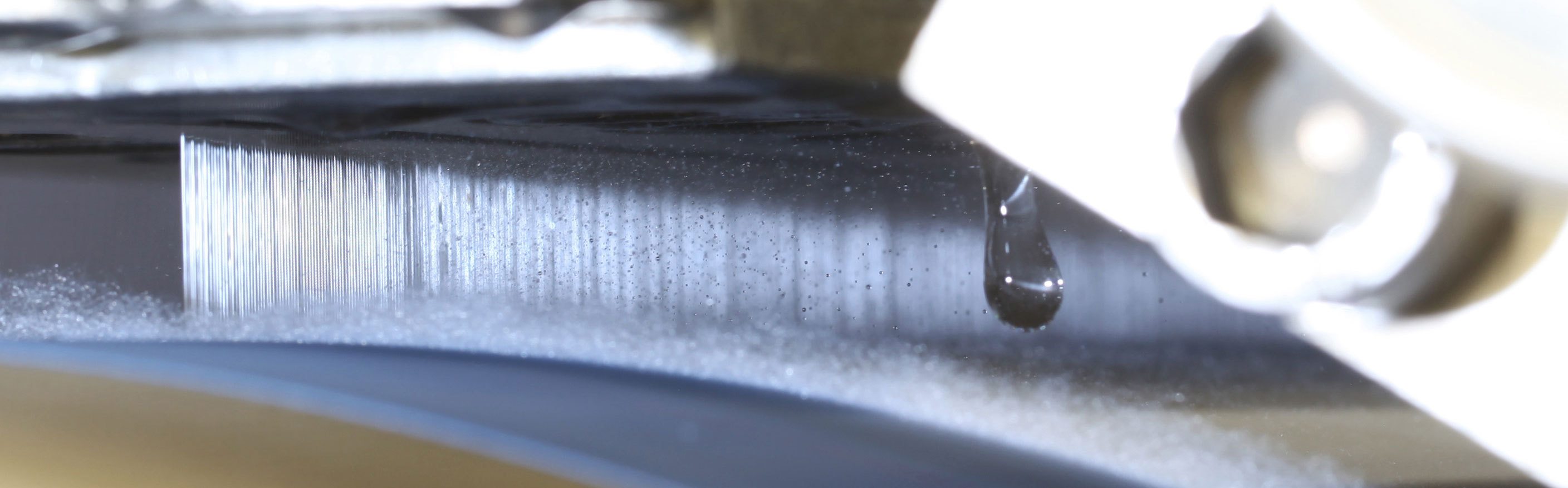

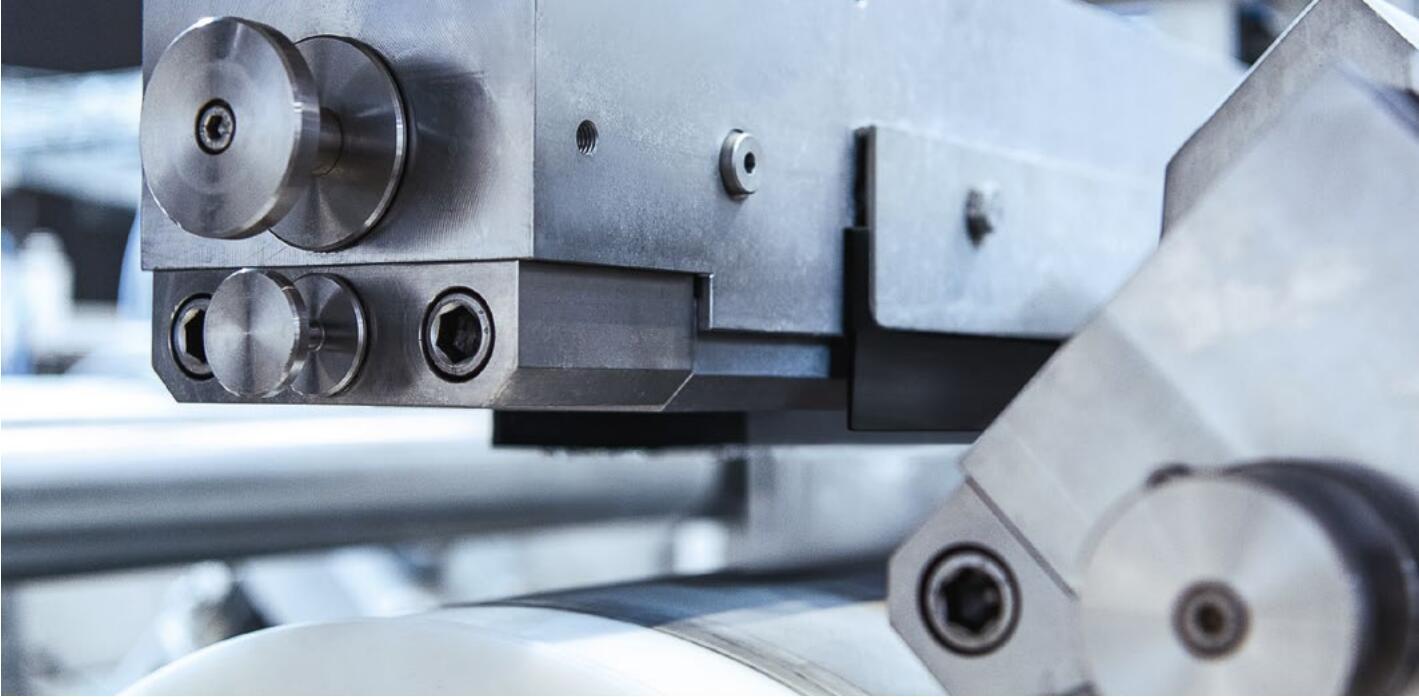

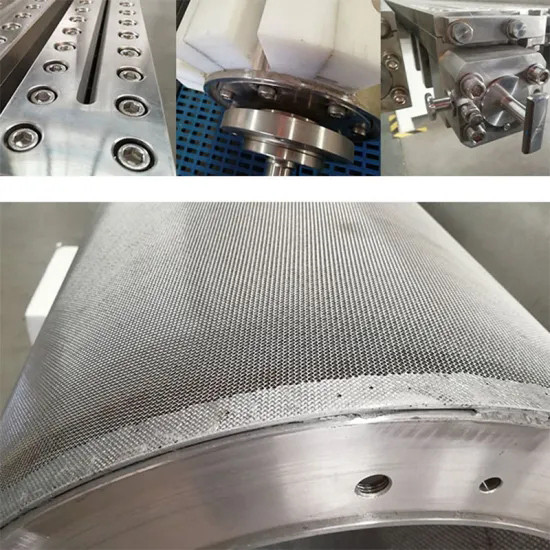

Core Conponents
End uses

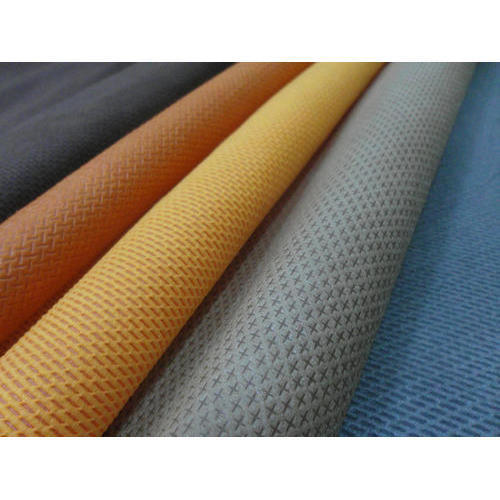

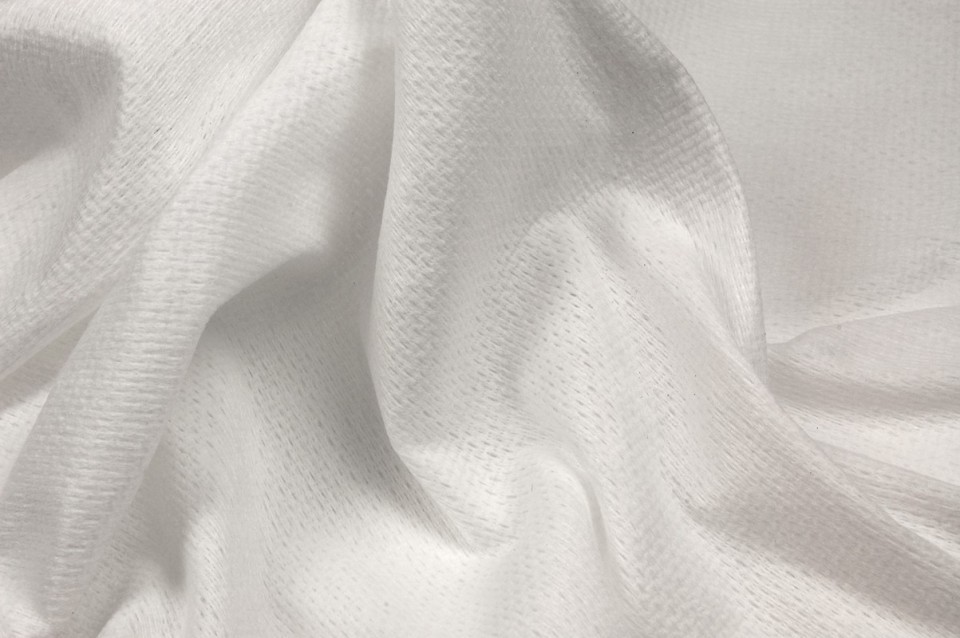

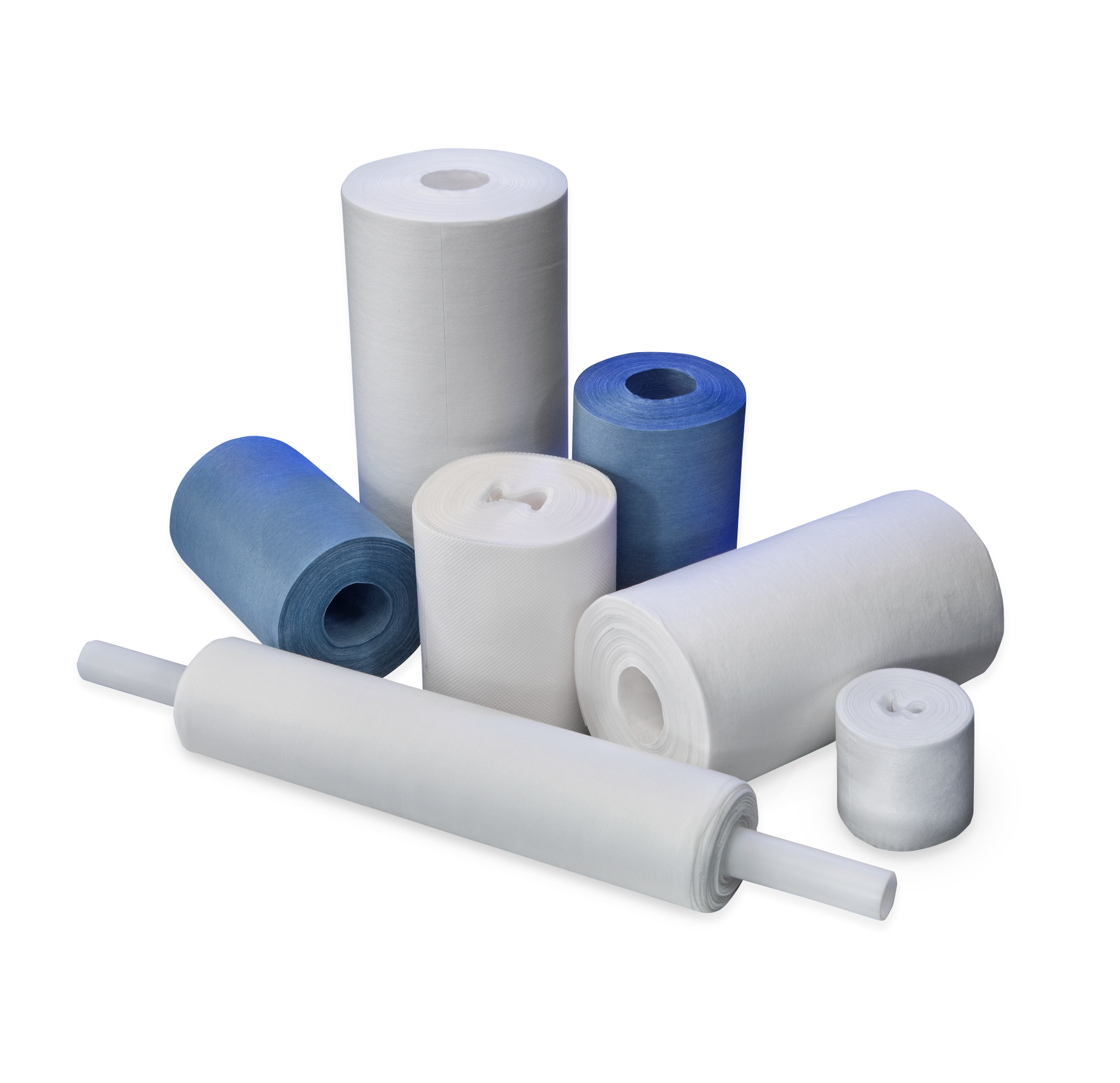

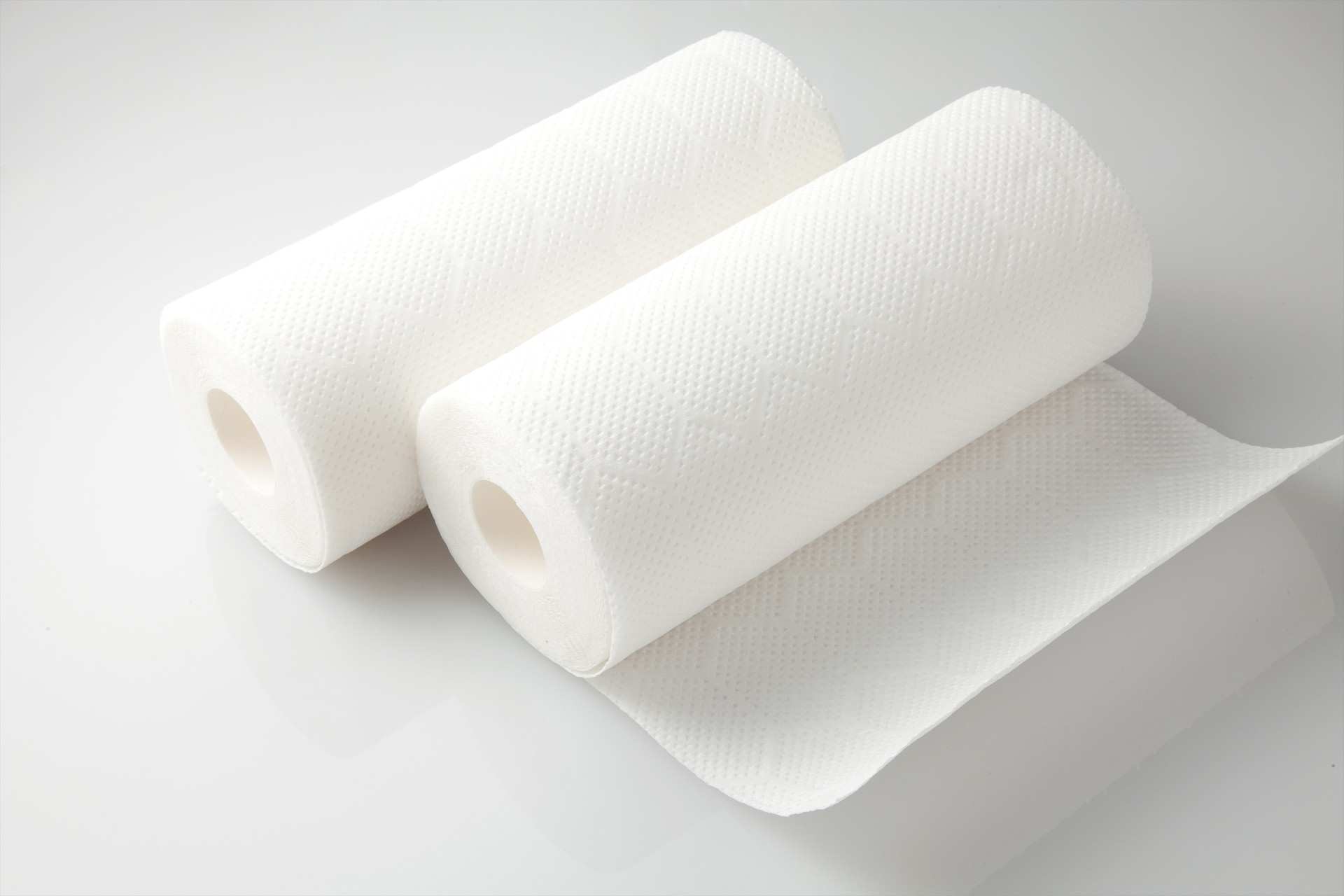

Finished Products
