SUNTECH Motorized Warp Knitting High Lift Trolley
SUNTECH Motorized Warp Knitting High Lift Trolley
SUNTECH Motorized Warp Knitting High Lift Trolley
SUNTECH Motorized Warp Knitting High Lift Trolley
SUNTECH Motorized Warp Knitting High Lift Trolley
SUNTECH Motorized Warp Knitting High Lift Trolley
Model
ST-MBT-06

Item specifics

Usage
warp beam high lift transport
Structure
Roll Container
Material
Carbon Steel
Wheel
Four-wheel
Item
Suntech Motorized Warp Knitting High Lift Trolley
Carrying Capacity
800-2000kgs
Beam Flange Diameter
500-1000mm
Lifting Height
4200 mm
Lifting/Driving
Two AC Motors
Battery
24V/210Ah (240Ah)

Product review

Description

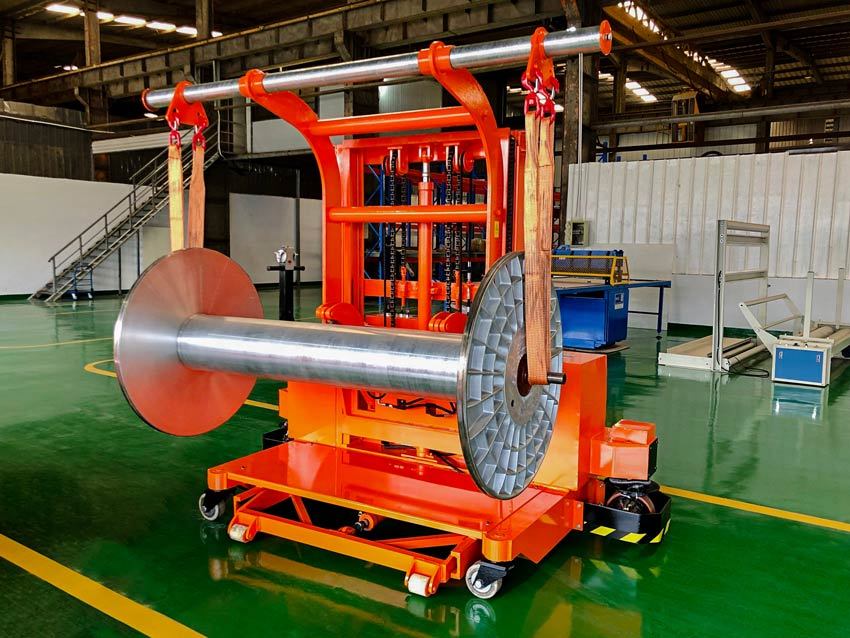

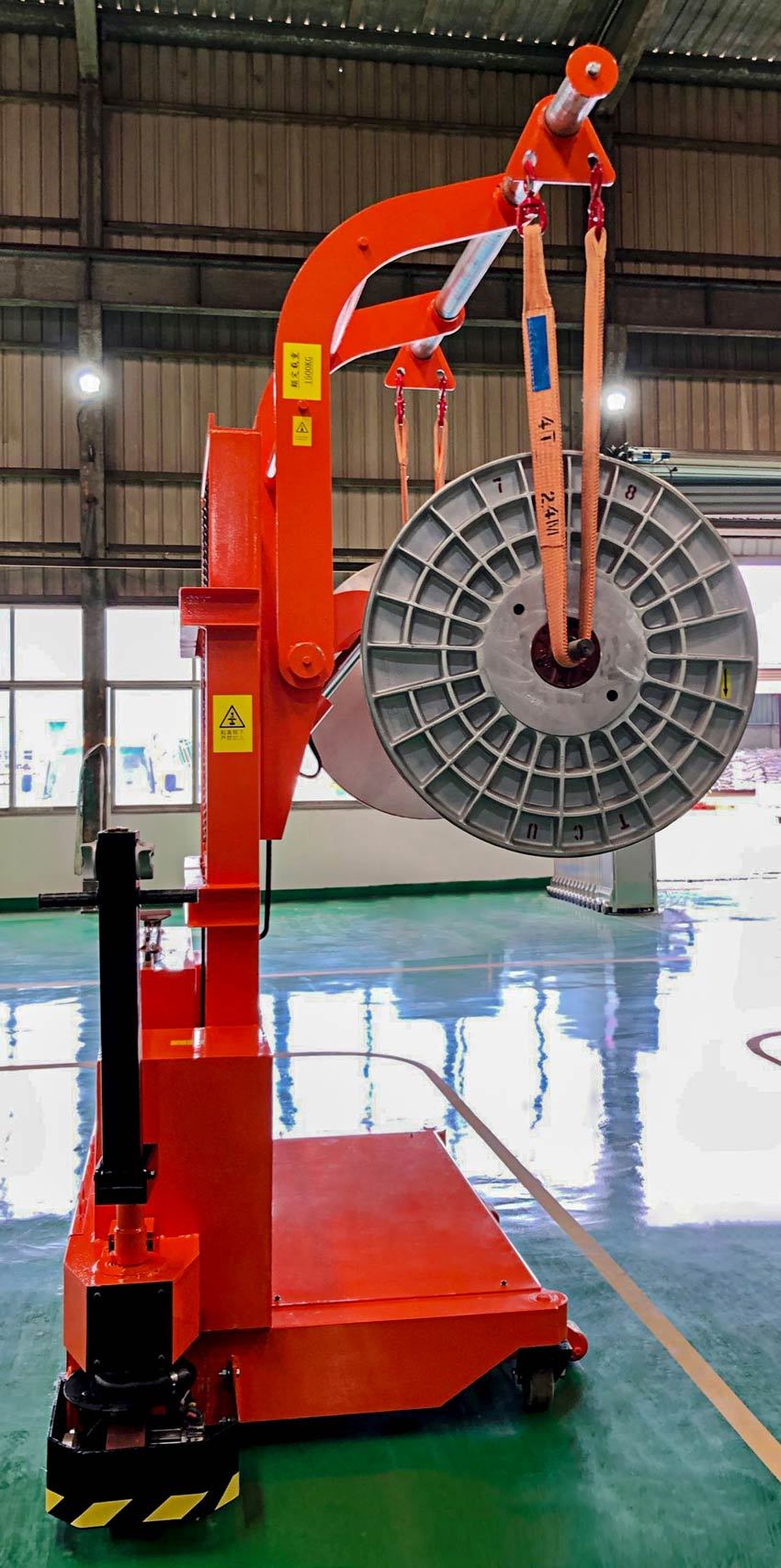

SUNTECH Motorized Warp Knitting High Lift Trolley
With the warp knitting high lift trolley, pre-assembled warp beams weighing up to 2000kgs from the assembling rack and are mounted into the knitting machines. The vehicle can also be used in restricted spaces due to its compact design.
More Images
Carrying Capacity:

Carrying Capacity:

Beam Flange Diameter:

500-1000mm

Lifting/Driving:

Two DC motors

Battery:

24V/210Ah(240Ah)

Lifting Height:

4200mm
1).Direct transport from the warehouse or the weaving
preparation area to the knitting machine,without having to
handle the warp beams in between.
2).Operations can be performed with steel ropes.
3).Smooth control of lifting and lowering as well as swiveling.
4).Smooth forward and backward moving of foot support.
