SUNTECH Motorized warp beam trolley

Group Motorized Warp Beam Carriers
Min. Order 1 piece
Terms of Payment L/C, T/T
Update Time 2020-05-07
Item specifics
Usageweaving beam transport
Itemmotorized beam trolley
Main MaterialCarbon Steel
Beam Flange Diameter800-1250mm
Beam Barrel Diameter100-400mm
DrivenTwo AC motors
After-sales Service ProvidedEngineers available to service machinery overseas
Carrying Capacity1000-2500kg
  • Description

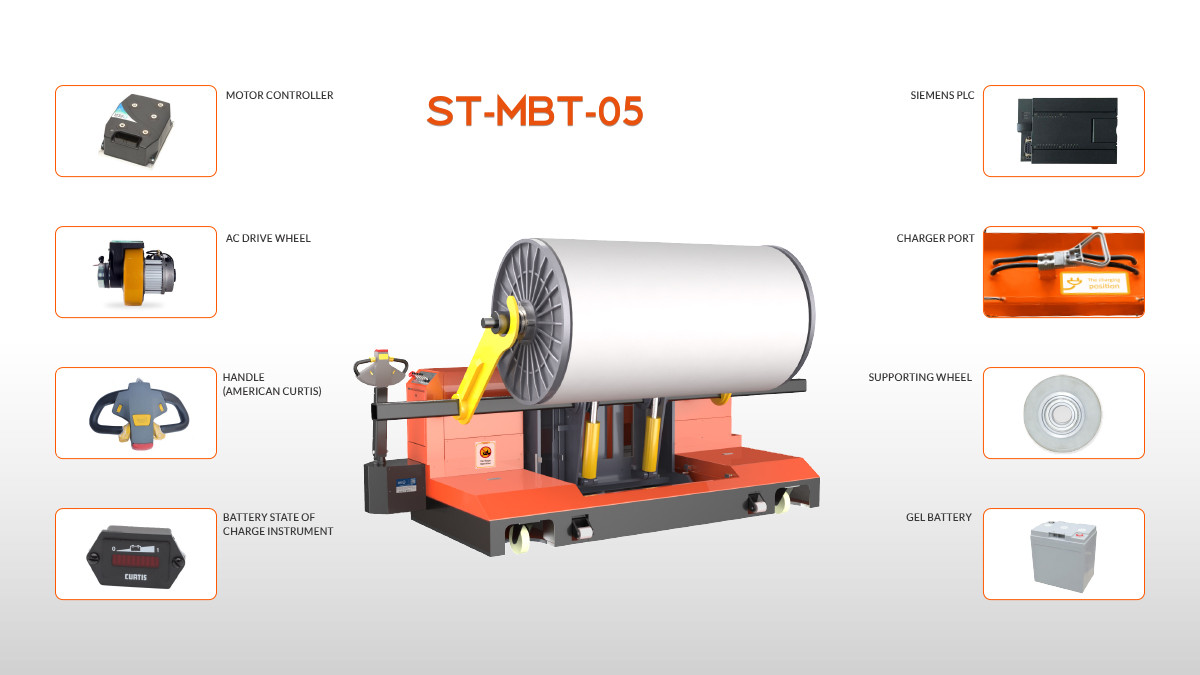

SUNTECH Motorized warp beam trolley
(FOR UPPER & BOTTOM WARP BEAM) Suitable for Upper & Botto weaving machines. The lifting movement and the lowering operation are performed by means of a mains-powered hydraulic power unit.
Carrying Capacity:

1000-2500kgs

Beam Flange Diameter:

800-1250mm

Beam Barrel Diameter:

100-400mm

Lifting/Driving:

Two DC motors

Battery:

24V/210Ah(240Ah)

Lifting:

2300mm
1).Two travelling gears ensure optimum traction and curvedriving.
2).Two automatically extending support wheels.
3).Taking up of warp beam by means of adjustable grippers.
4).Smooth control of lifting and lowering as well as swiveling.
5).Smooth forward and backward moving of reach mast.
