SUNTECH Hydraulic Empty Warp Beam Trolley

Group Hydraulic Warp Beam Trolleys
Min. Order 1 piece
Terms of Payment L/C, T/T
Update Time 2019-06-17
Item specifics
UsageIndustrial
StructureRoll Container
MaterialAluminium
Wheelfive
ItemSuntech Hydraulic Empty Warp Beam Trolley
Carrying Capacity250kg
Beam Flange Diameter800-1000mm
CertificationCE,ISO 9001
  • Description

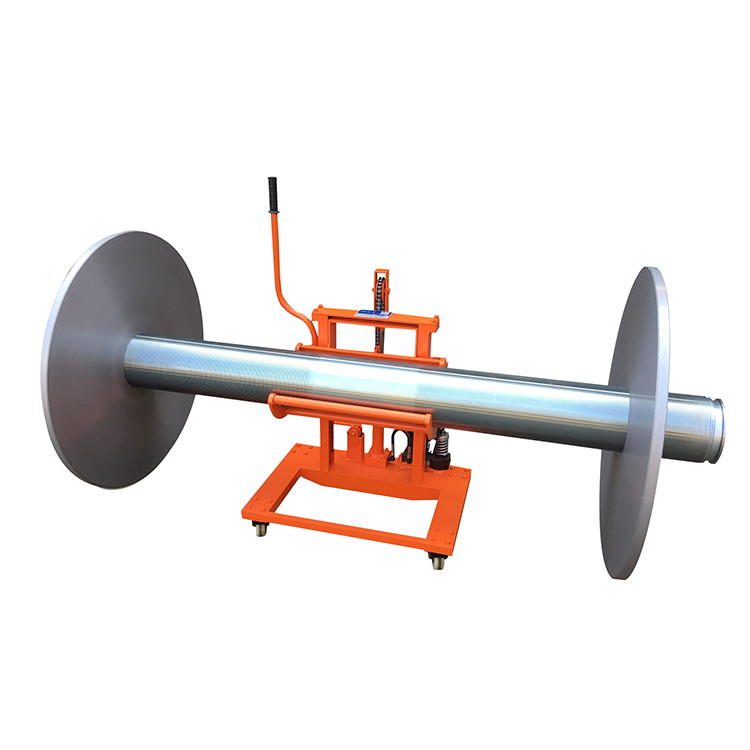

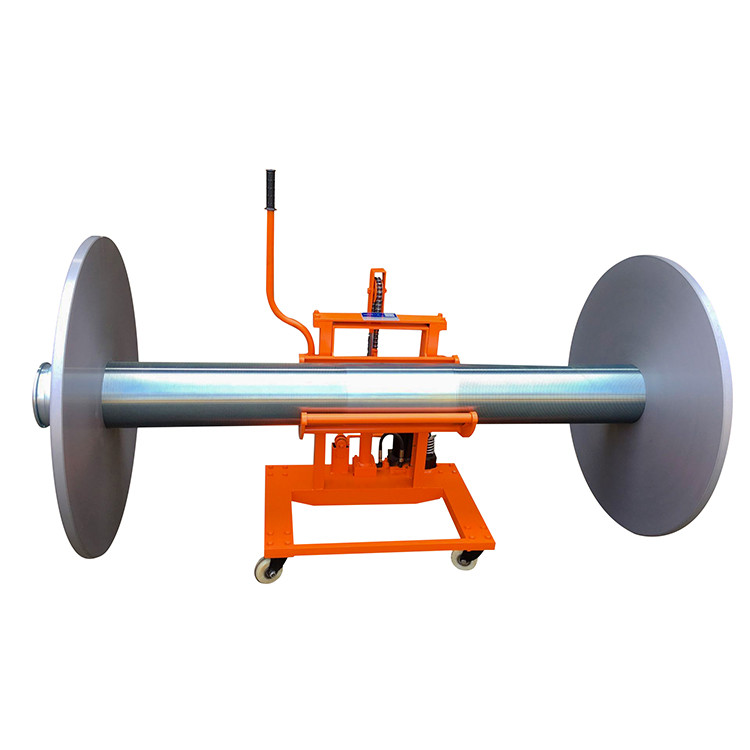

SUNTECH Hydraulic Empty Warp Beam Trolley
Suitable for empty beam transporting, loading/unloading in loom shed and beaming section. Carrying capacity up to 400kgs and beam flange diameter up to 1250mm.
More Images
Carrying Capacity:

400kgs

Beam Flange Diameter:

800-1250mm

Hydraulic Cylinders:

One

Hydraulic Unit:

One

Centre Height:

750mm
1).Suitable for loading,unloading and carrying empty beams of dia 800-1250mm flange dia.
2).Carrying capacity up to 400kgs.
3).Four caster wheels provided underneath of trolley for easy movement.
